LYBRA OPRS
- Ideal for wrapping loads with no weight limitations
- Compact design with a reduced footprint

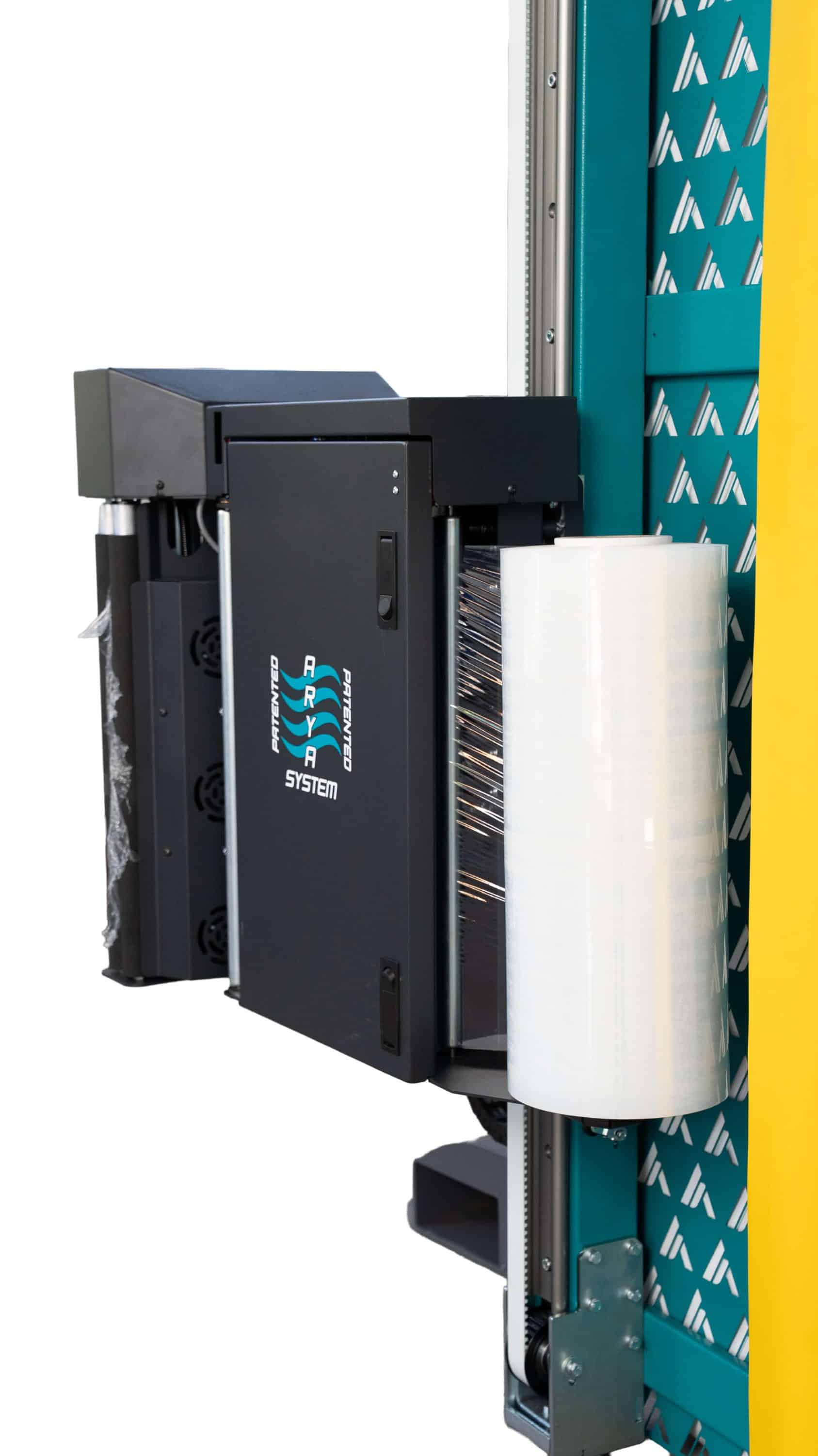

- ARYA system for automatic film attachment and cutting
- OPRS carriage with advanced film tension control

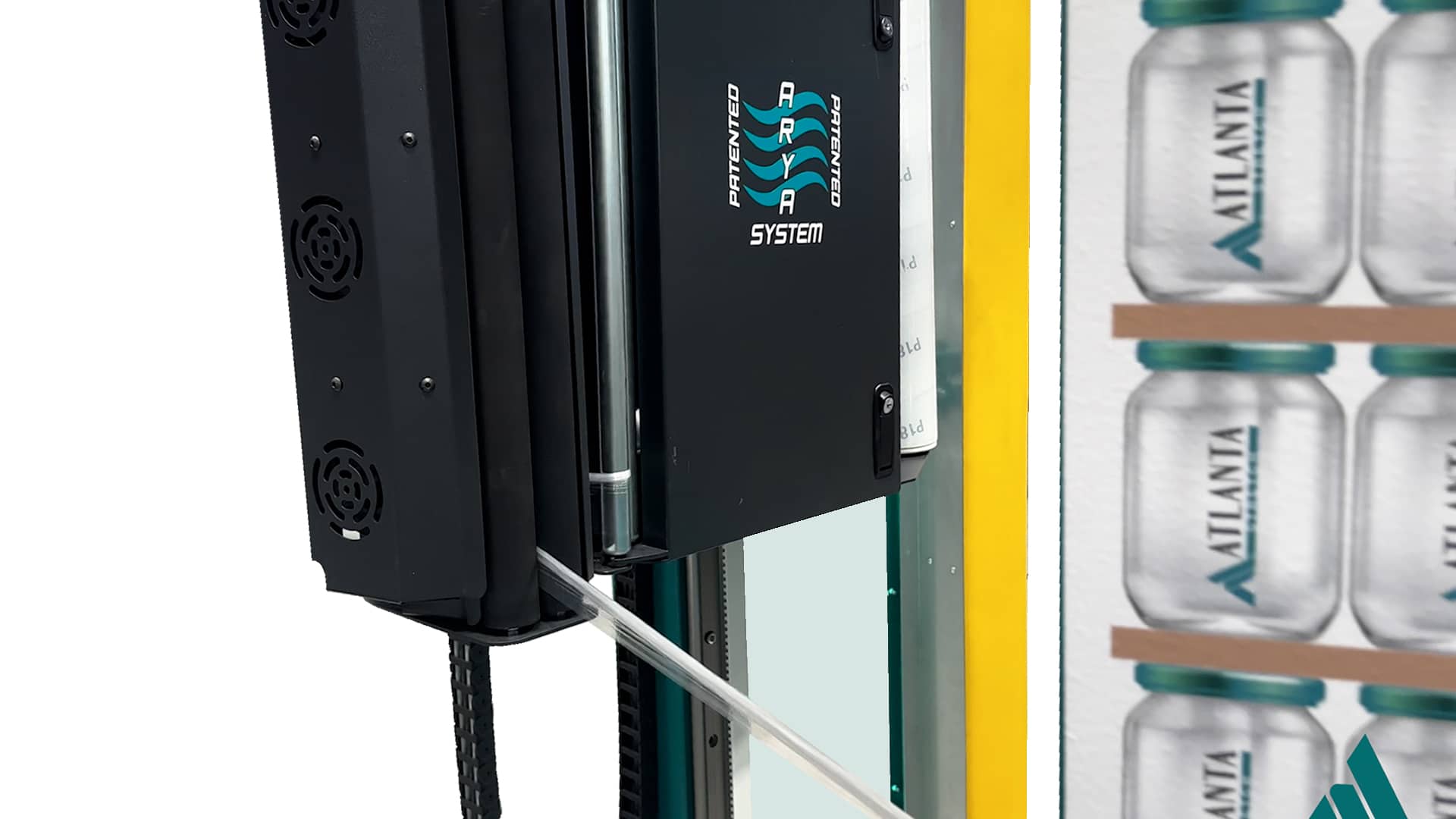

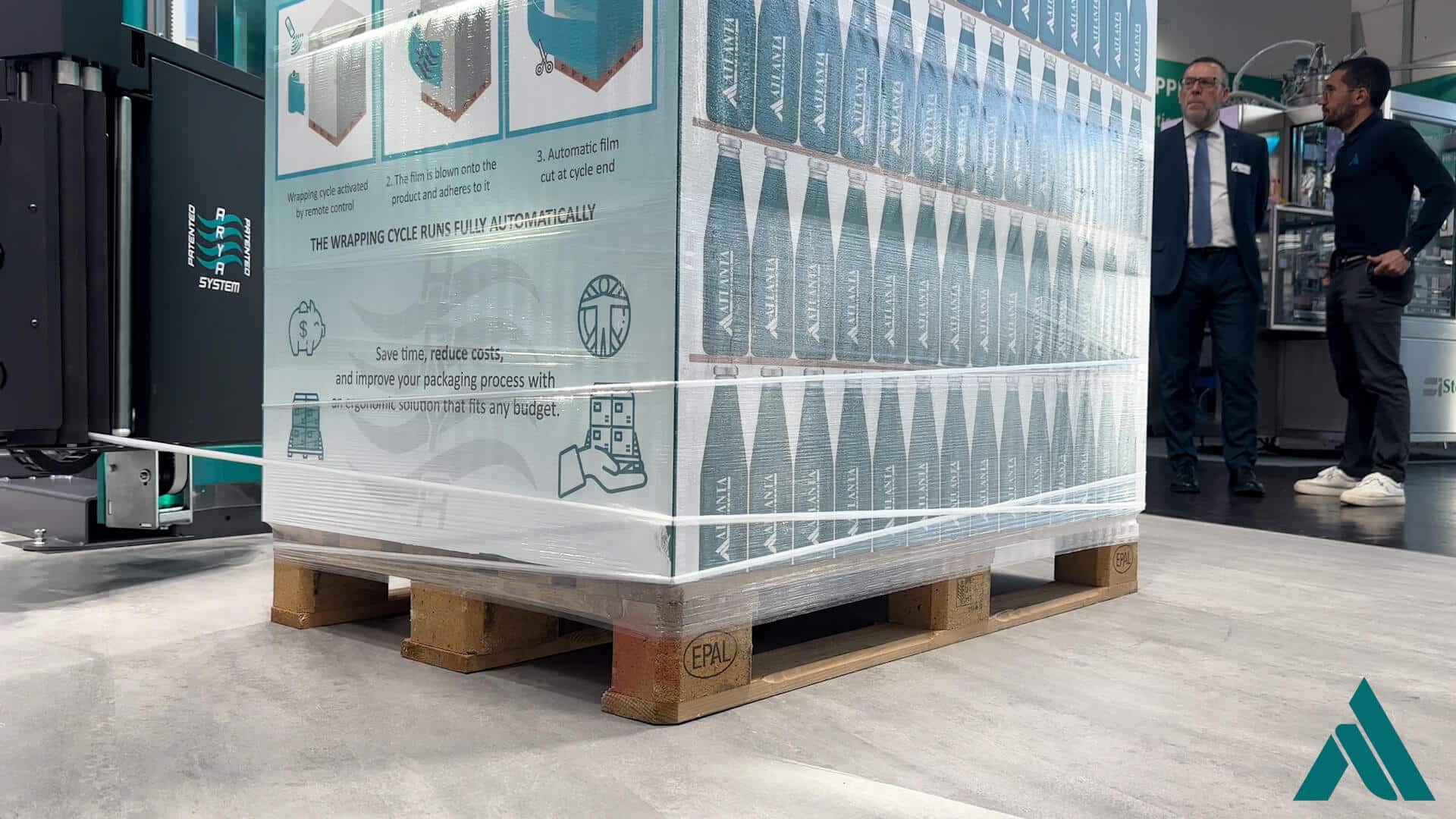

- Roping system for reinforcing critical load areas

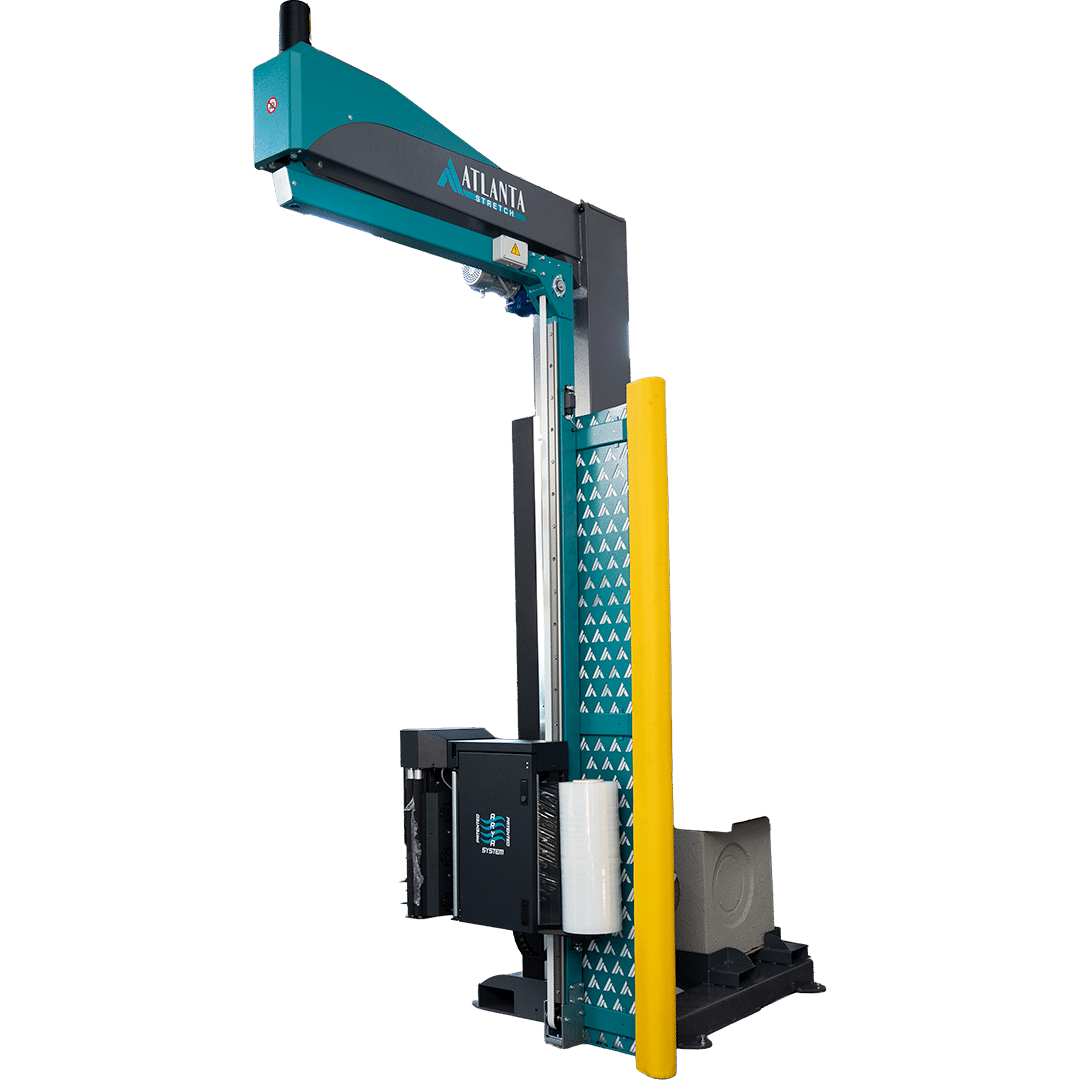

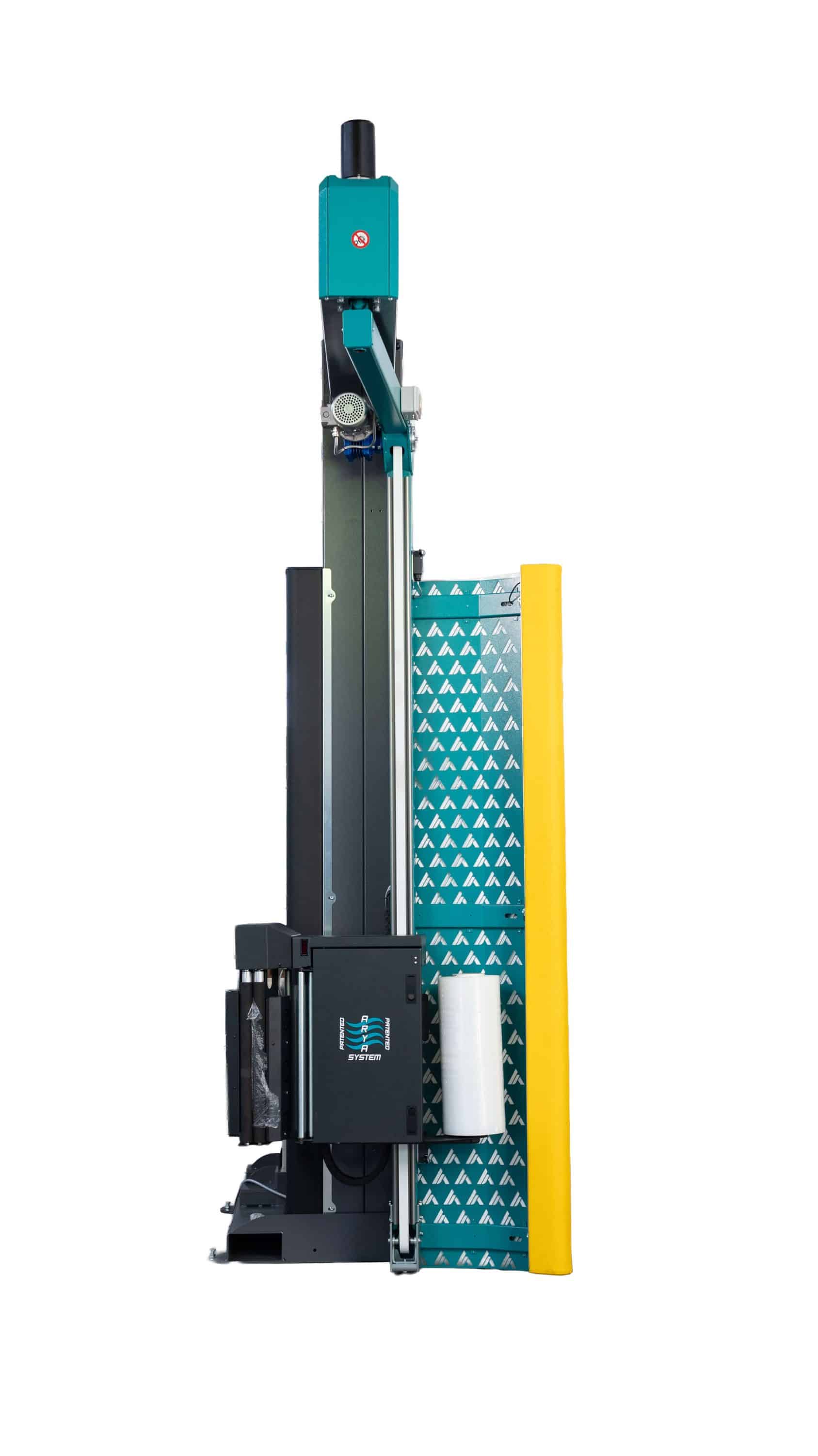

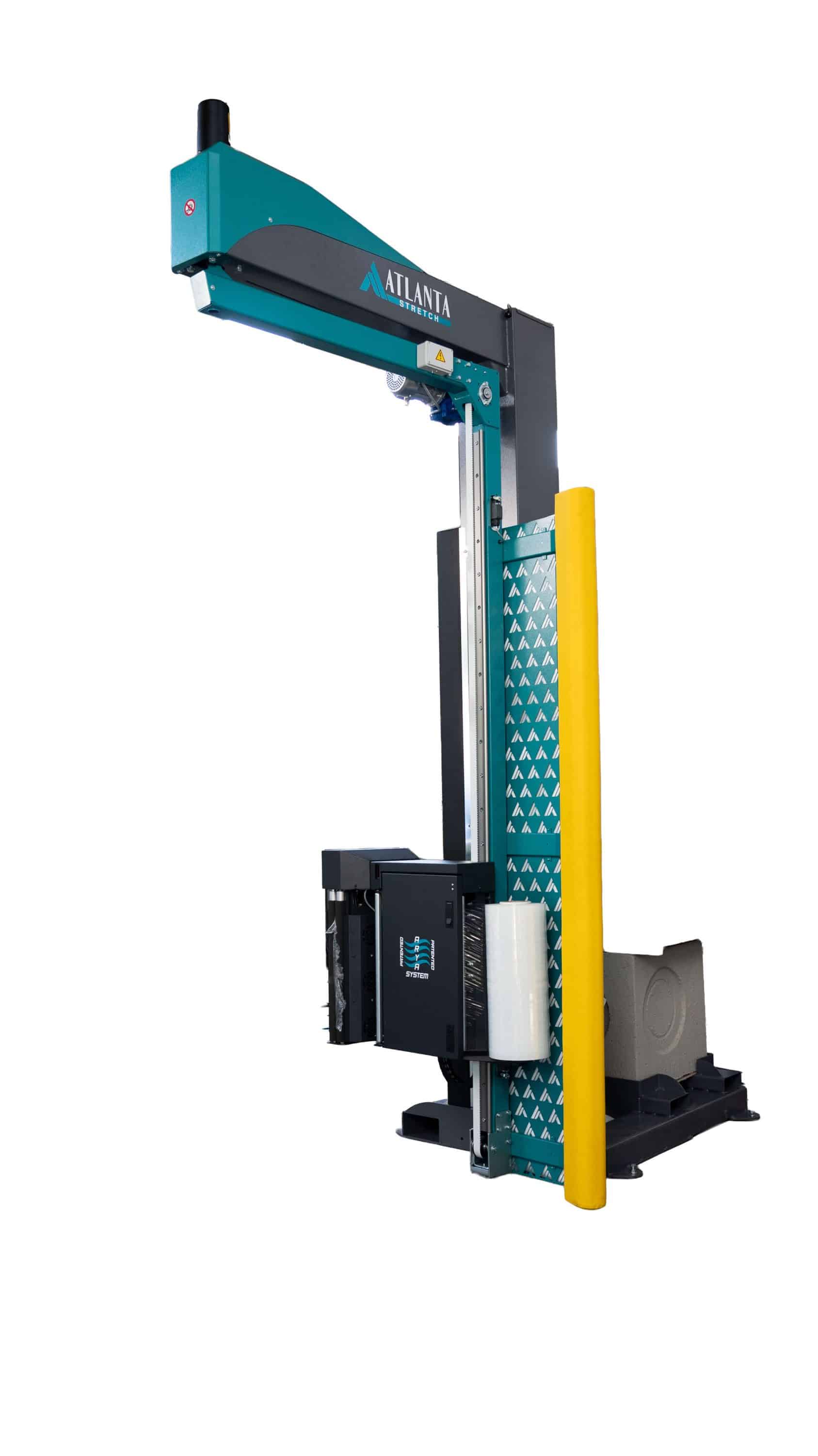

LYBRA OPRS is a semi-automatic rotary arm stretch wrapping machine designed to integrate the key load stabilization technologies into a single, compact solution.
Combining the OPRS carriage, the ARYA system, and the roping device, it ensures precise film control, automated wrapping cycle management, and enhanced load containment at critical pallet points.
The rotary arm design makes it particularly suitable for handling heavy and unstable loads, improving load stability throughout handling, storage, and transportation operations.
LYBRA OPRS
VIDEO GALLERY
Download the documentation
Click the button and leave your email to immediately receive layout and brochure of the machine.
access reserved for resellers
If you are a reseller, you can ACCESS OUR RESERVED AREA and download all the machine’s multimedia media (photos, videos, pdf, etc.).
LYBRA OPRS
INFORMATION REQUIRED
Related products
Technical data
| Etichetta | Valore |
|---|---|
| LYBRA OPRS wrapping programs | Operator panel with 6 programs |
| STD maximum pallet diagonal | 1710 mm (1200 x 1200 mm pallet) |
| Inverter-controlled acceleration/deceleration ramps | Included as standard |
| Precise arm positioning at cycle end | Included as standard |
| Film carriage system | Single-ratio OPRS carriage (One Pre-Stretch) |
| Standard wrapping height | 2450 mm |
| Pallet height detection by photocell | Included as standard |
| Carriage ascent speed | Independently adjustable from descent speed |
| Carriage descent speed | Independently adjustable from ascent speed |
| Total installed power | 1.5 kW |
| Production capacity | Up to 20 pallets/hour ** |
| ** Depending on film quality and operating conditions. Wrapping parameters and pallet dimensions may affect maximum production output. |
